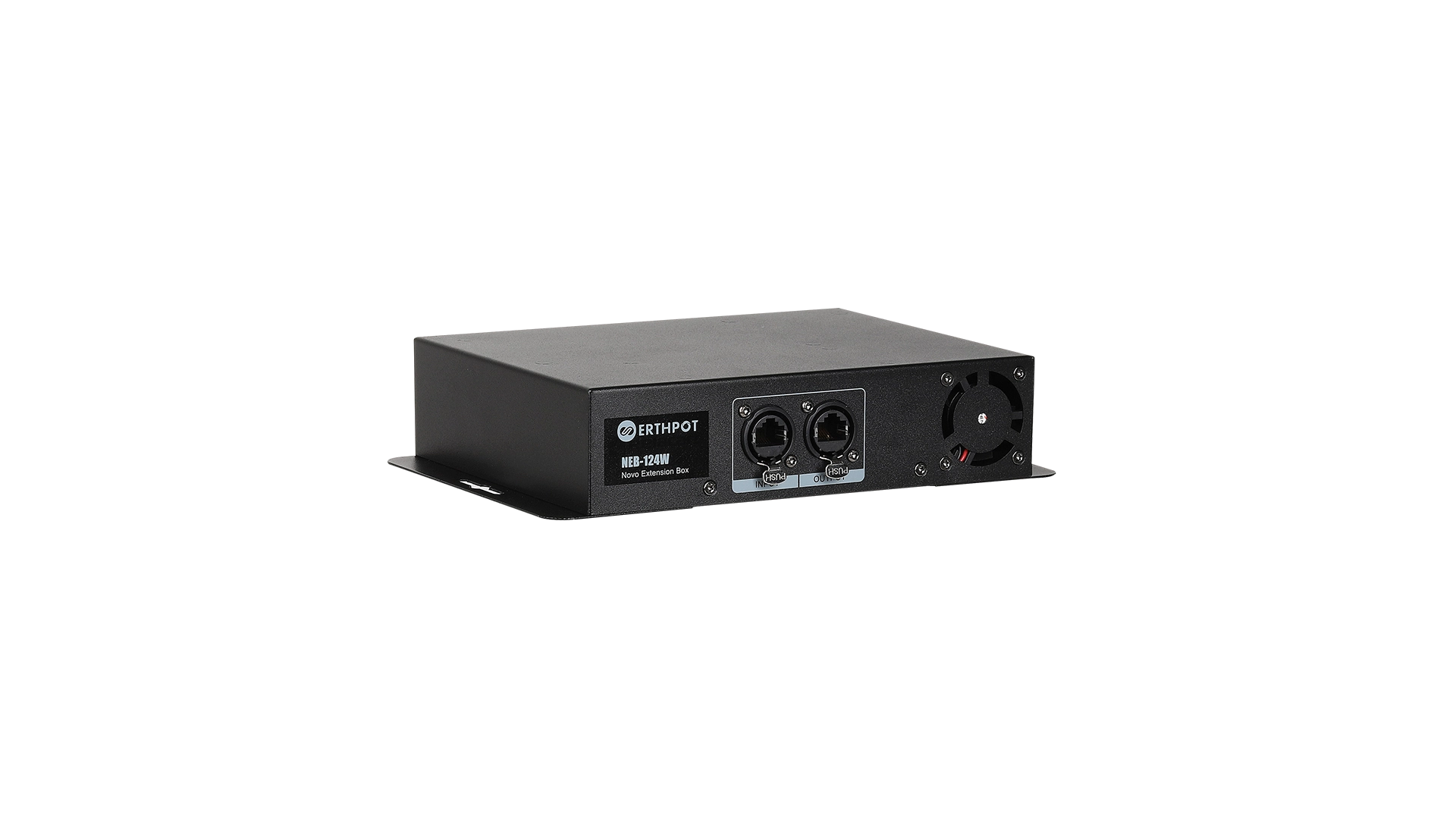

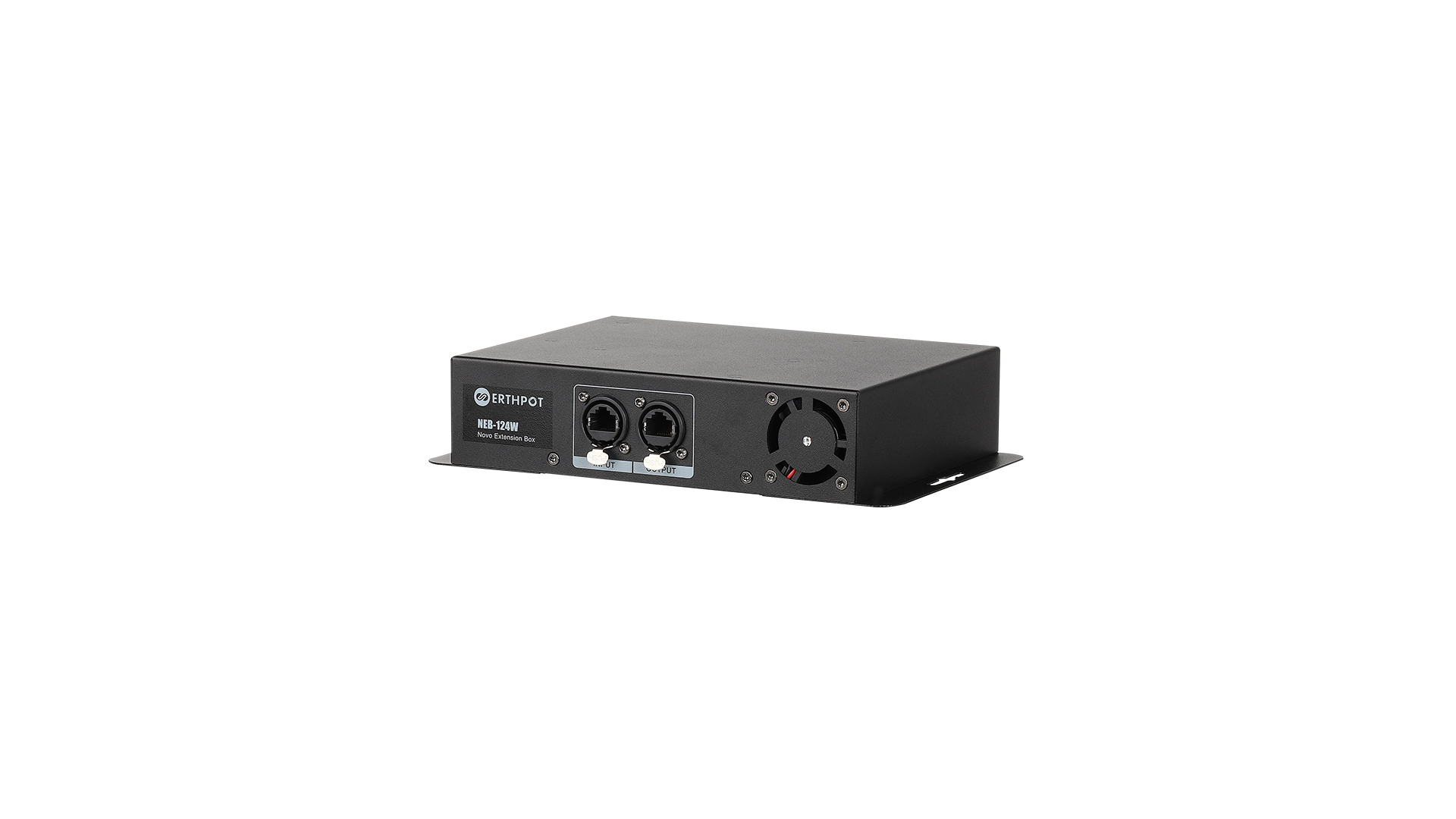

NEB-124W

The NEB-124W is a repeater used in the Novo Conference System to provide a power connection for the microphone units it enhances the stability of the entire system and increases the number of microphone units used. NEB-124W repeater is made of pressed steel metal housing, which is sturdy, and stylish. It can be fixed on the wall or the bottom of the table etc., which is convenient for installation purposes

Specifications
Features

Model	NEB-124W
Power supply (AC)	110-240V, 50/60Hz
Output voltage	24V
Maximum output power	72W
Input/output terminal	RJ45 Network port
Specification (mm)	220 (L) x 140 (W) x 48 (H)
Weight (g)	950 gm

NEB-124W has a built-in 72W/24V power module, which can provide power for 30 microphone unit
Two network cable connectors are connected by a dedicated network cable, one is the input and the other is the output
Built-in a fan to ensure that the power supply maintains a good heat dissipation effect when working at high power
With a working indicator, it lights up in red when it is on standby and blue when it is working
