Central Controller Unit
Categories: Controller Unit

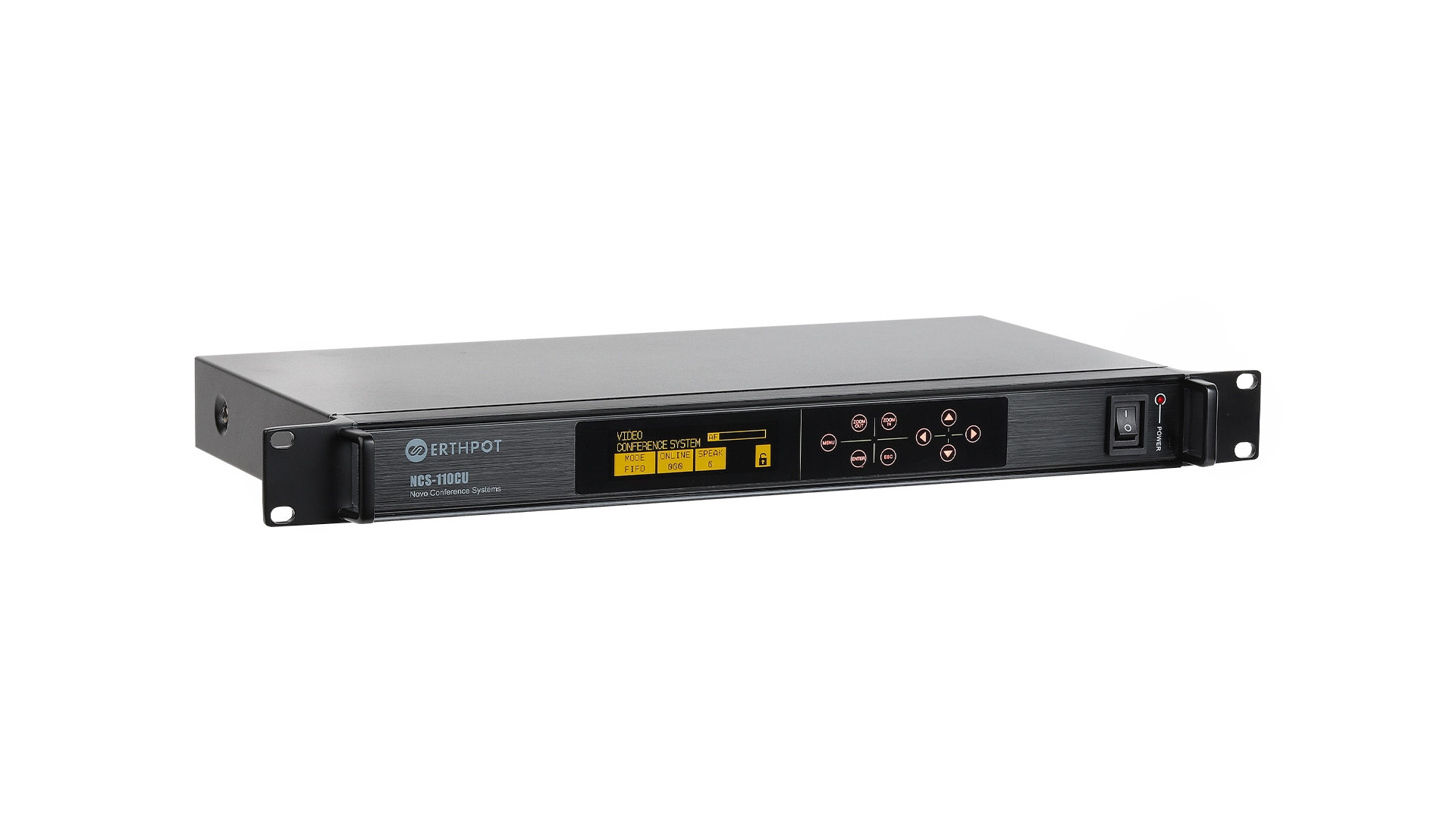

NCS110-CU is the central controller unit of Novo Conference System which powers, manages and controls the whole conference system. The latest microprocessor chip automatically detects the number of units connected, current conference mode, controls cameras connected to it and many other functions which are required in a modern-day conference room. It’s built in Audio Gain Processing circuit prevents unnecessary feedback and improves the vocal intelligibility of the room. Every function and parameter in this unit can be easily accessed through the front OLED display which shows the microphone status, operating mode, number of active speakers etc. Housed in a pressed steel body with 1RU size NCS110-CU is designed based on “everything built into hardware” where the complete system is made to run like an appliance without much technical support required
| Number of microphones supported | 110 |
|---|---|
| Maximum Power consumption | 100W/24V |
| XLR balances carnon maximum output level | 14.6dBu |
| Maximum output level of the 6.35mm | 14.6dBu |

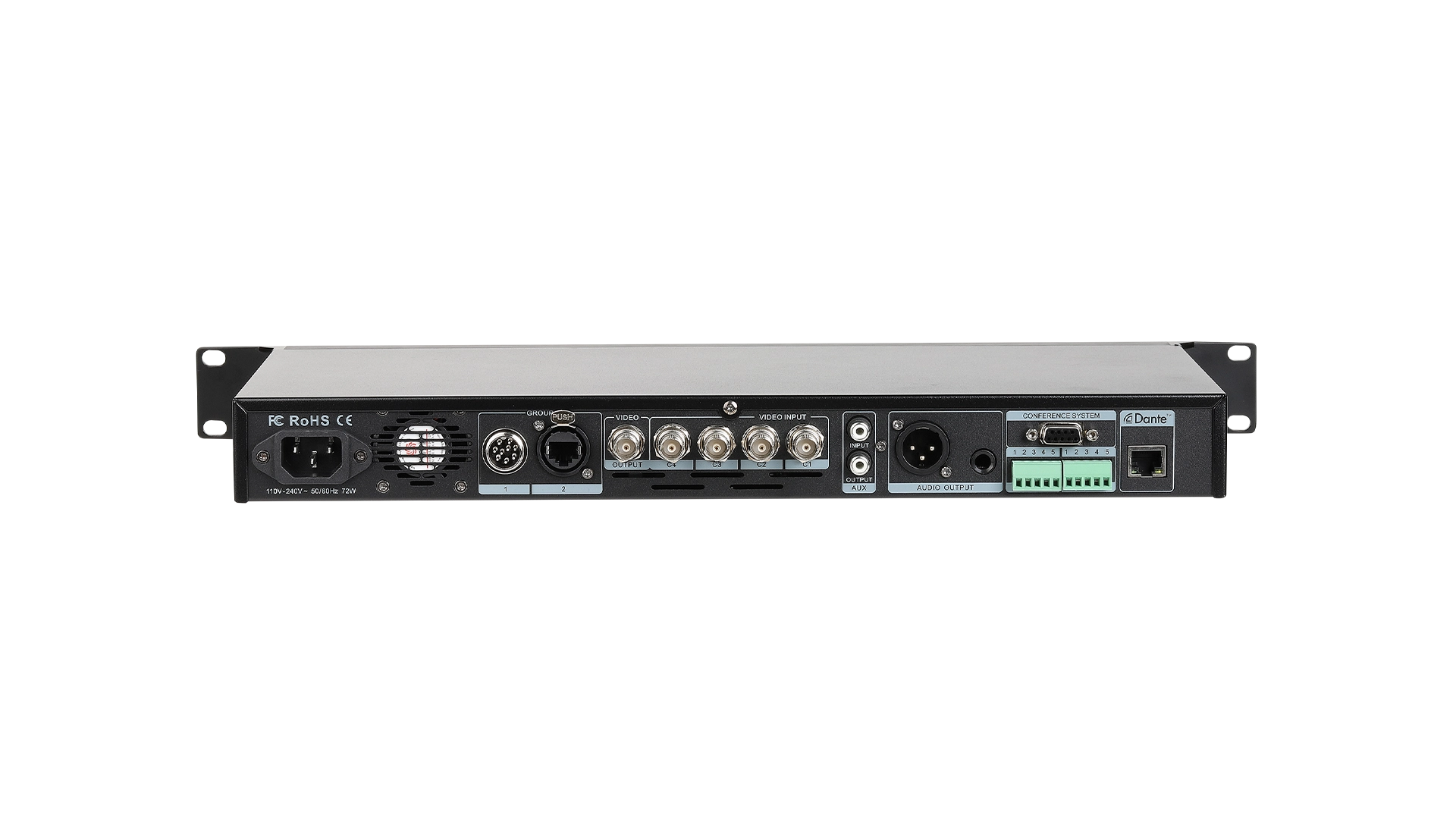

| Balance socket | Anti-drop 9P aviation plug x I |
| Microphone unit extension | Network port (female) xl |
| Video input port | BNCx4 |
| Video output port | BNCx1 |
| Video interface impedance | 75Ω |
| Dante interface | RJ45x1 |
| Audio output | XLRM x 1, 6.35mmjackx 1, RCA Lotus x 1 |
| Audio input | RCA Lotus x 1 |
| Pin serial port control interface | DB9 Female plug x 1 |
| Rs-232 control protocol interface | 5P Phoenix terminal X 1 |
| Rs-422 control protocol interface | 5P Phoenix terminal X 1 |
| Supply voltage | 90-264V AC or 127-370V AC, 47-63Hz |
| Weight | about 2.3kg |
| Dimension (mm) | 410(W) X43 (H) x206 (D) |
