KYRO STATION

Paging Microphone

Categories: Paging Microphone

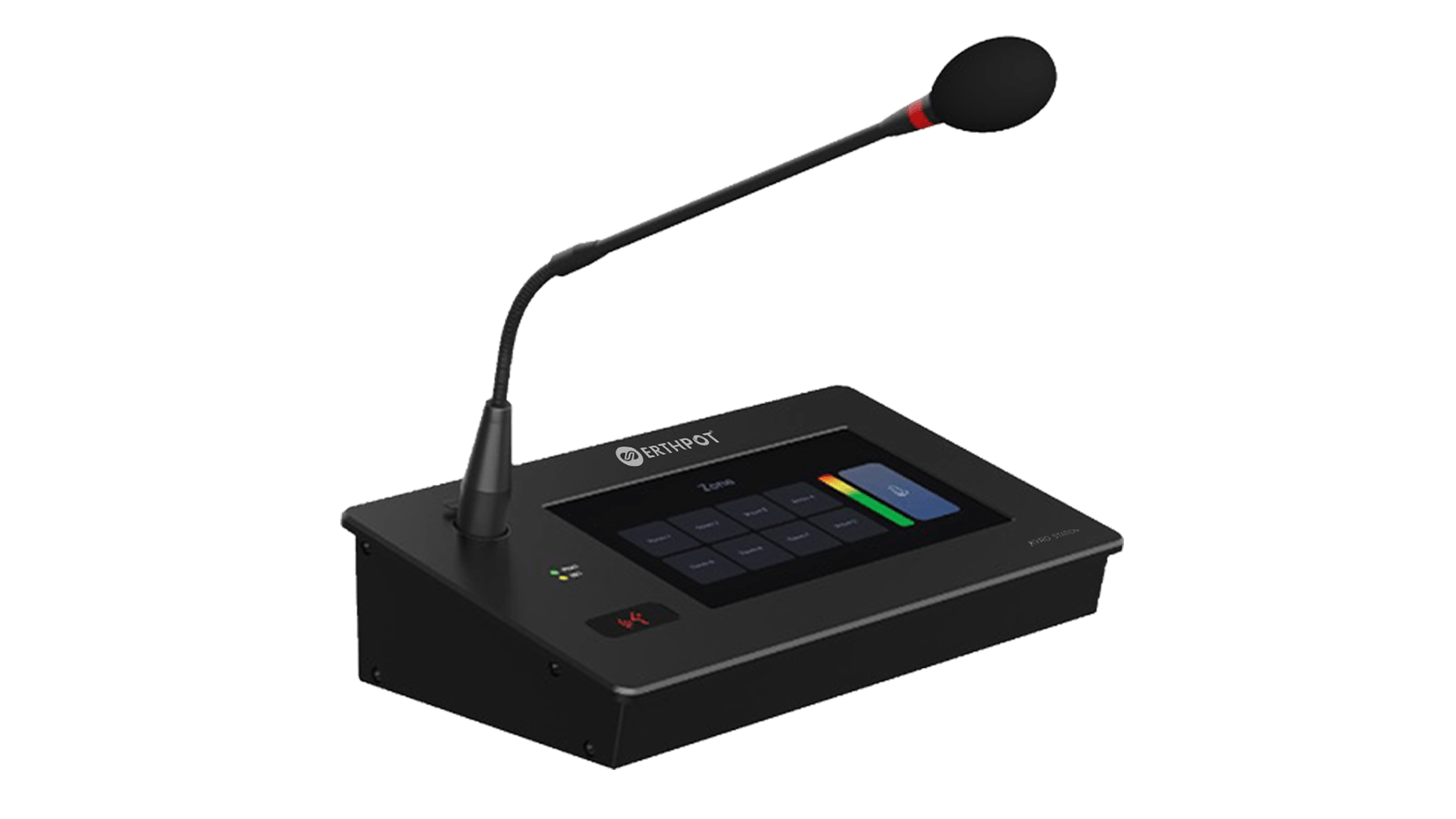

The ERTHPOT KYRO Station is a sophisticated Dante-enabled paging microphone designed for intelligent, seamless communication in modern audio environments. It features an integrated 7-inch Android touch screen that serves as a customizable control interface for system monitoring and routing. Built for flexibility, the station supports both digital Dante transmission and analog output switching, making it ideal for complex paging or intercom systems. With its professional condenser gooseneck microphone and dual-mode paging functionality, the KYRO Station provides a high-fidelity, user-friendly solution for commercial audio management.

  • Specifications
  • Features

SystemAndroid 10.00
Resolution7"RGB 1024*600
ProcessorA133 1.6GHz Cortex A53 4 core 64bit
RAM2GB
Storage16GB
Dante Channel1x1
Analog Output1 Balanced Output (Source-selectable Output Signal)
Mic Gain0-30 dB 1dB step
Mic Polar PatternHypercardioid
Frequency Response20Hz~20kHz(0/-0.6 dB)
Maximum Level+13dBu
Sensitivity-40dB (1V \ 1 Pa)
Sampling Rate48 kHz
THD+N≤0.003% (1kHz, A-weighted)
Input Dynamic Range≥104dB
Output Dynamic Range≥104dB
SNR≥103dB
Noise≤-91dBu (1kHz, +13dBu A-weighted)
Output Impedance600Ω
Power Supply12V DC or PoE (IEEE 802.3af) power supply
Dimension (WxDxH)260x155x65mm (No microphone included)
  • 7-inch Android Interface: Features a 1024×600 resolution touch screen running Android 10.0 for intuitive system control.
  • Dante Digital Audio: Supports 1×1 Dante audio transmission for seamless integration with digital processors and consoles.
  • Customizable UI: The user interface can be tailored to match specific audio processors for dedicated monitoring and control.
  • Built-in Mic Preamp: Includes a 0-30dB gain knob on the rear panel to ensure optimal signal levels.
  • Professional Microphone: Equipped with a hypercardioid condenser gooseneck microphone driven by 48V phantom power.
  • Dual-Mode Paging: Offers both “Push-To-Talk” and a triple-tap “Lock-on” mode for hands-free speaking.

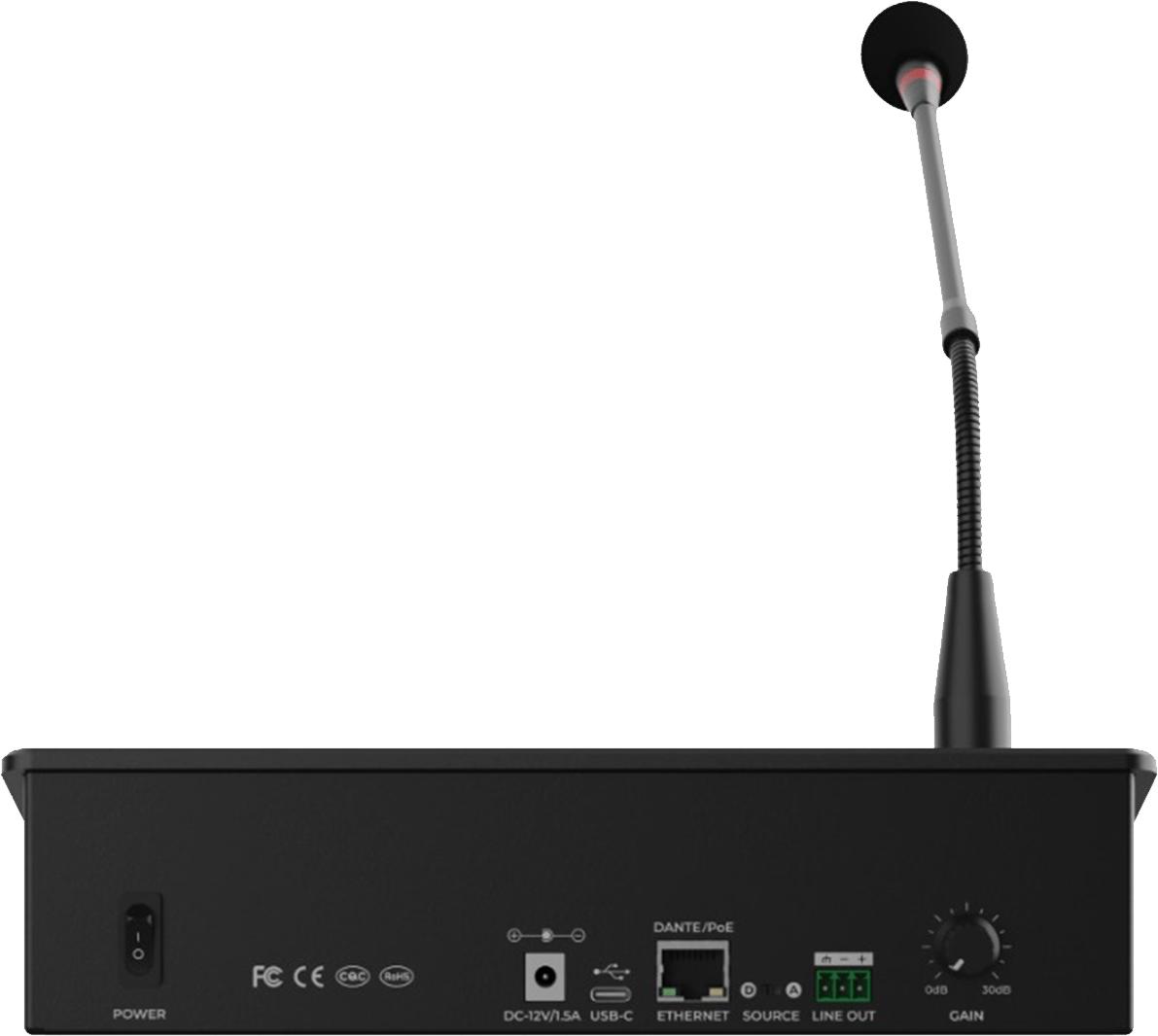

  • Analog Output Switching: A rear toggle allows users to switch the output signal between analog and digital sources.
  • Dual Power Options: Supports flexible deployment via PoE (IEEE 802.3af) or a 12V DC power supply.
  • High-Performance Hardware: Powered by a 1.6GHz 4-core processor with 2GB RAM and 16GB of internal storage
  • Superior Audio Quality: Delivers a wide frequency response of 20Hz–20kHz with a high signal-to-noise ratio (SNR) of ≥103dB.
