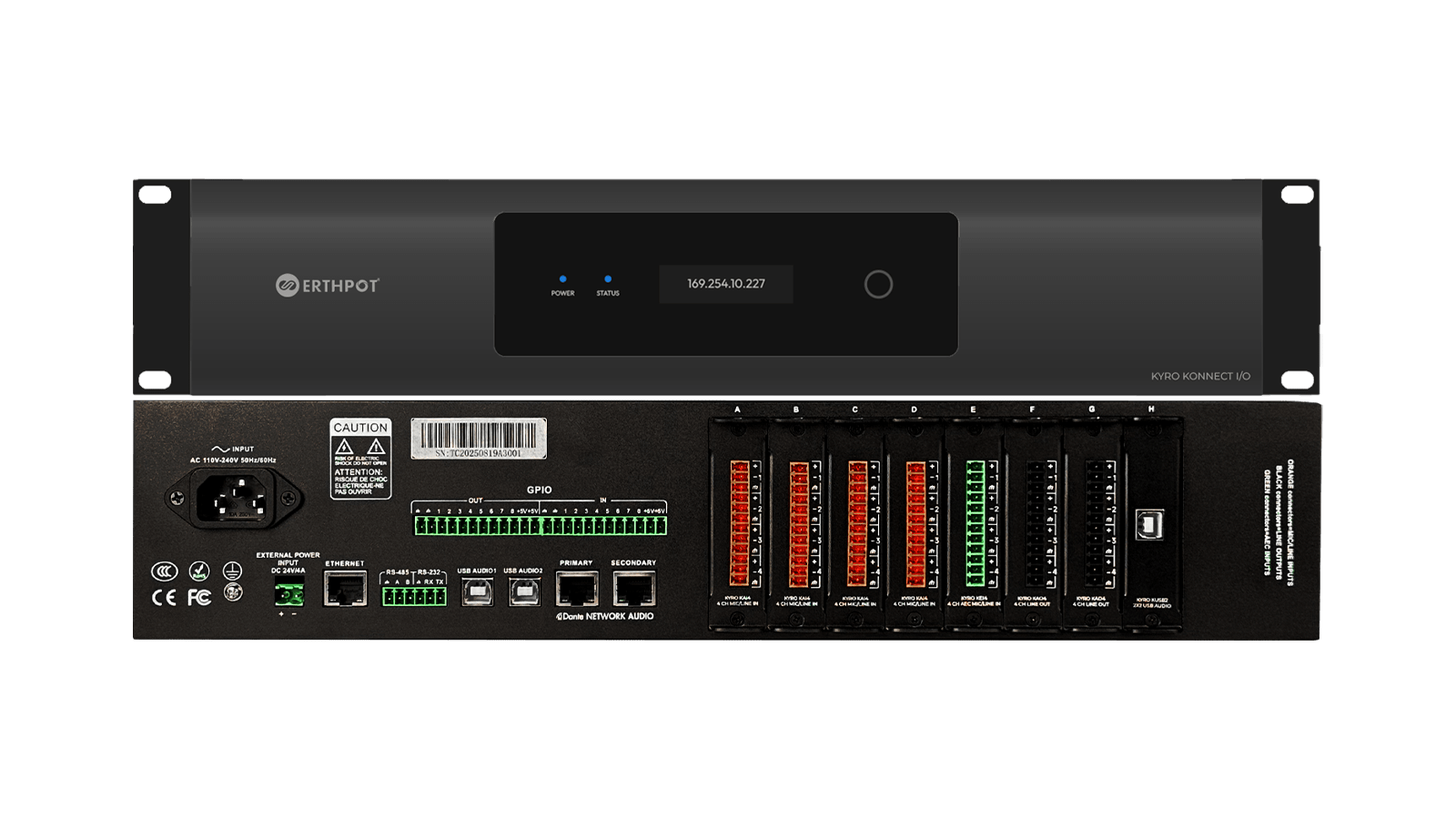

The KYROKONNECT I/O is the flagship processing server in the KYRO series, built with three 1 GHz processors operating on a real-time Linux platform to deliver stable, low-latency network audio performance. It supports 128×128 channels of network audio transmission and up to 32 channels of local analog I/O, with modular expansion options for analog input/output, Acoustic Echo Cancellation (AEC), and USB audio interfaces. A primary-secondary redundancy architecture with a heartbeat signal-based system and automated synchronization ensures high availability and seamless failover. Its drag-and-drop DSP configuration software, integrated Lua scripting engine, and GPIO/RS232/RS485 control interfaces enable advanced customization and smooth integration into large-scale, mission-critical audio networking environments.
| Audio/IO Capacity | 8 audio I/O card slots |
|---|---|
| USB Storage Capacity | 64G |
| Dante Network Channel Capacity | 128 × 128 |
| Dynamic Range | > 118 dB |
| Frequency Response (±0.2 dB) | 20 Hz – 20 kHz |
| Phantom Power | +48V / 10 mA max |
| Frequency Response | (20 Hz – 20 kHz) ±0.3 dB |
| Input Impedance | 5.5 kΩ |
| Signal-to-Noise Ratio | < -112 dB |
| THD + N | ≤ 0.002% |
| Common Mode Rejection Ratio (@ 0 dBr) | > 91 dBu |
| Maximum Input Level (@ 1% distortion) | +22 dBu |
| Dante Primary/Secondary | RJ45 1000 Mbps |
| Voltage | 220 VAC – 240 VAC, 50 Hz |
| AC Main Power Supply | IEC connector |
| Product Dimensions (W × H × D) | 483 × 88 × 364 mm |
| Transport Weight | 8.5 kg** |
Equipment type: Optional board plug-in audio processing server.
Drag-and-drop DSP module (non-fixed), unified management.

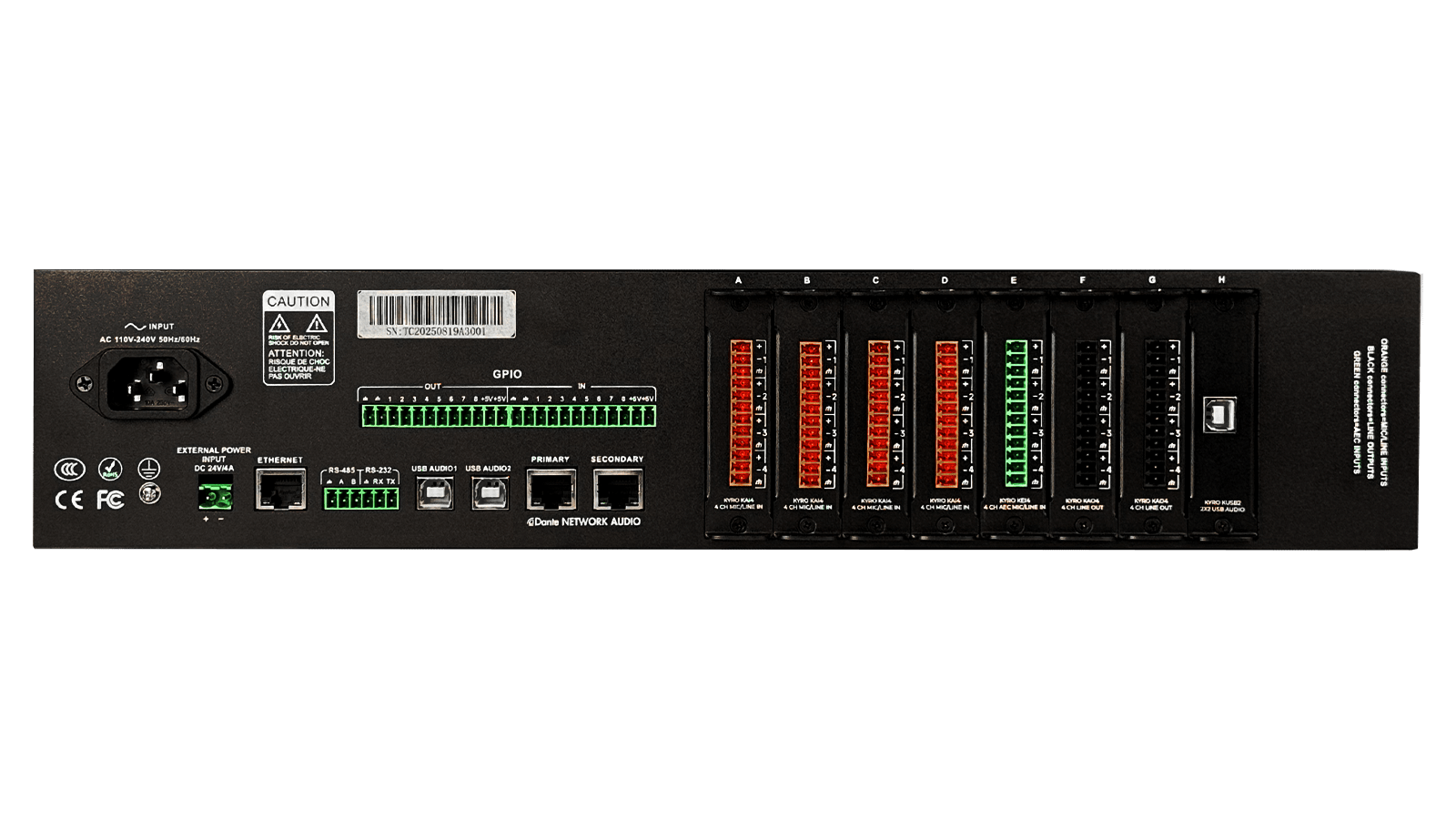

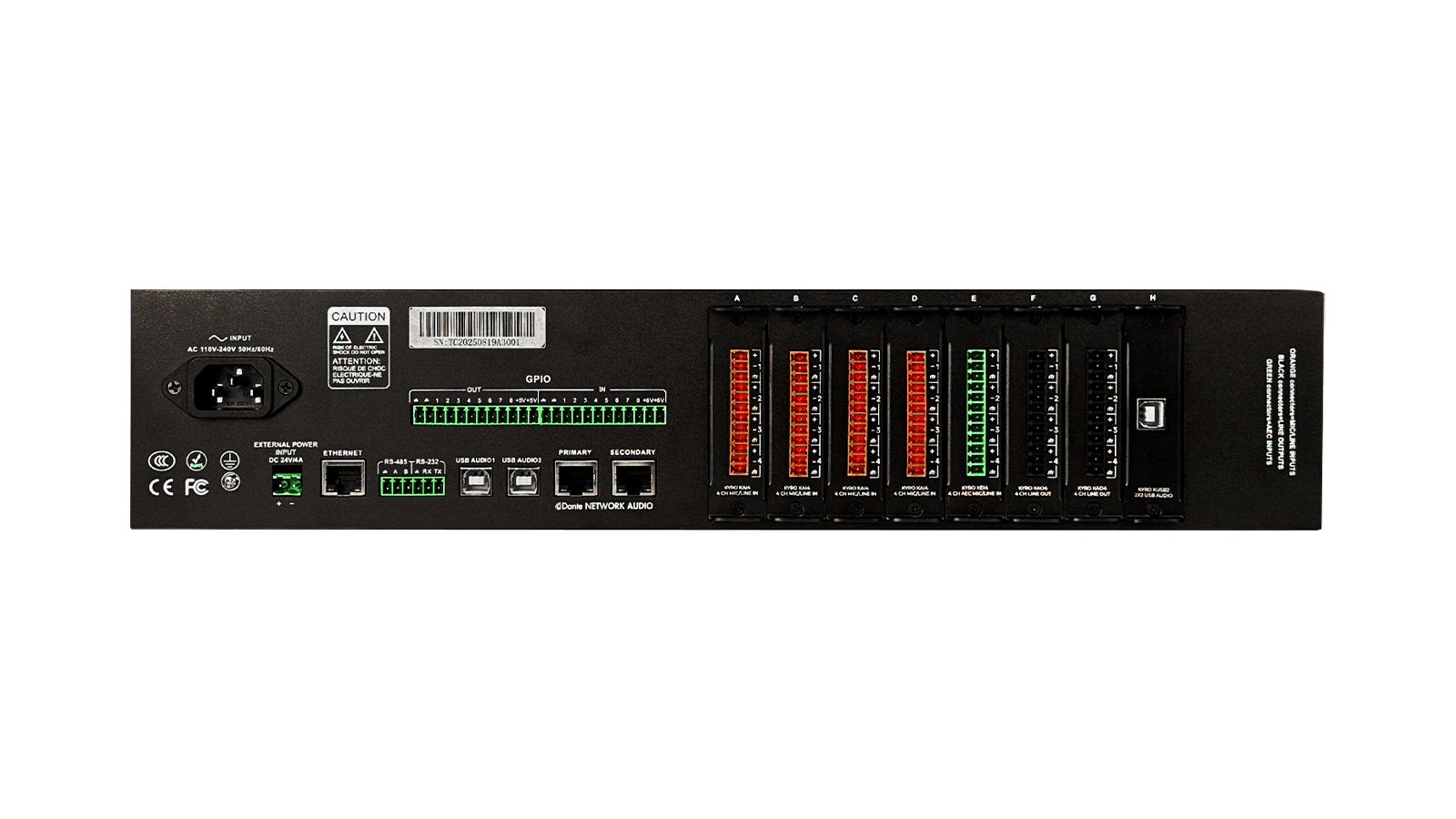

This machine has 8 expandable card slots, and can be equipped with a 4-channel microphone/line input card, a 4-channel line output card, a 4-channel AEC (acoustic echo cancellation) microphone/line input card, a 2-channel analog phone card, a 2-channel VOIP card, and a 2x2USB sound card.
Transmission method: equipped with dual network hot backup transmission.
AEC channel: local 20 channels, supports adding an AEC card, and can support 80 channels of AEC.
Audio playback: Built-in 16-channel player, supports MP3 and WAV audio files.
Dante network channels: 128×128 channels of Gigabit network transmission with network transmission backup.
AEC: Supports custom addition of independent AEC modules, with a maximum of 16 independent AEC.
Playback/recording: 4-channel audio playback supports timed playback of WAV and MP3, and 1-channel lossless recording; Built-in white noise, pink noise, and other signal generators.
Graphical user interface that can be edited as needed, supporting control on the software side, web side, and mobile side.
Built-in Lua script: provides flexible expansion and customization functions. Dual power supply redundancy (AC/DC).
