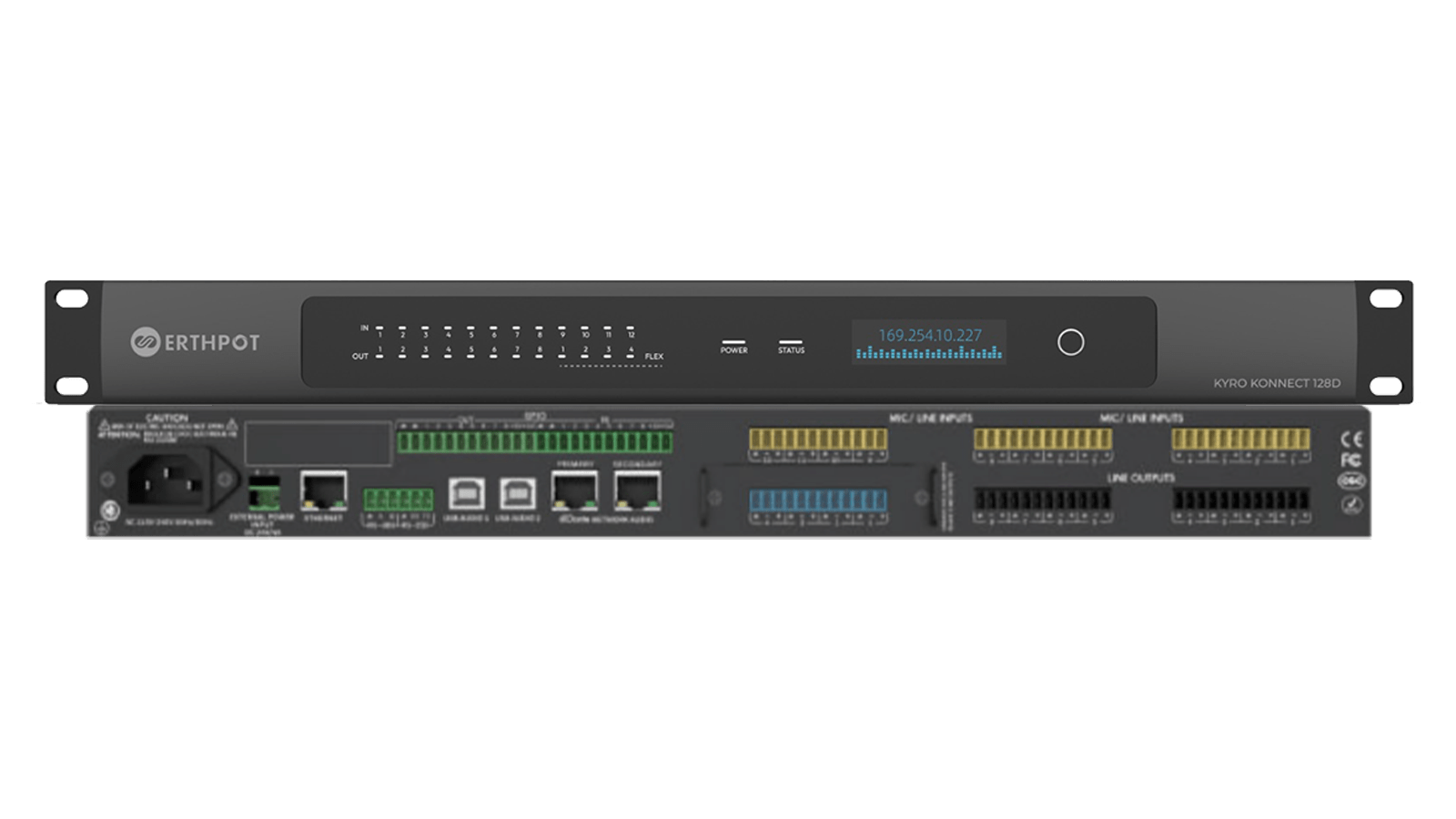

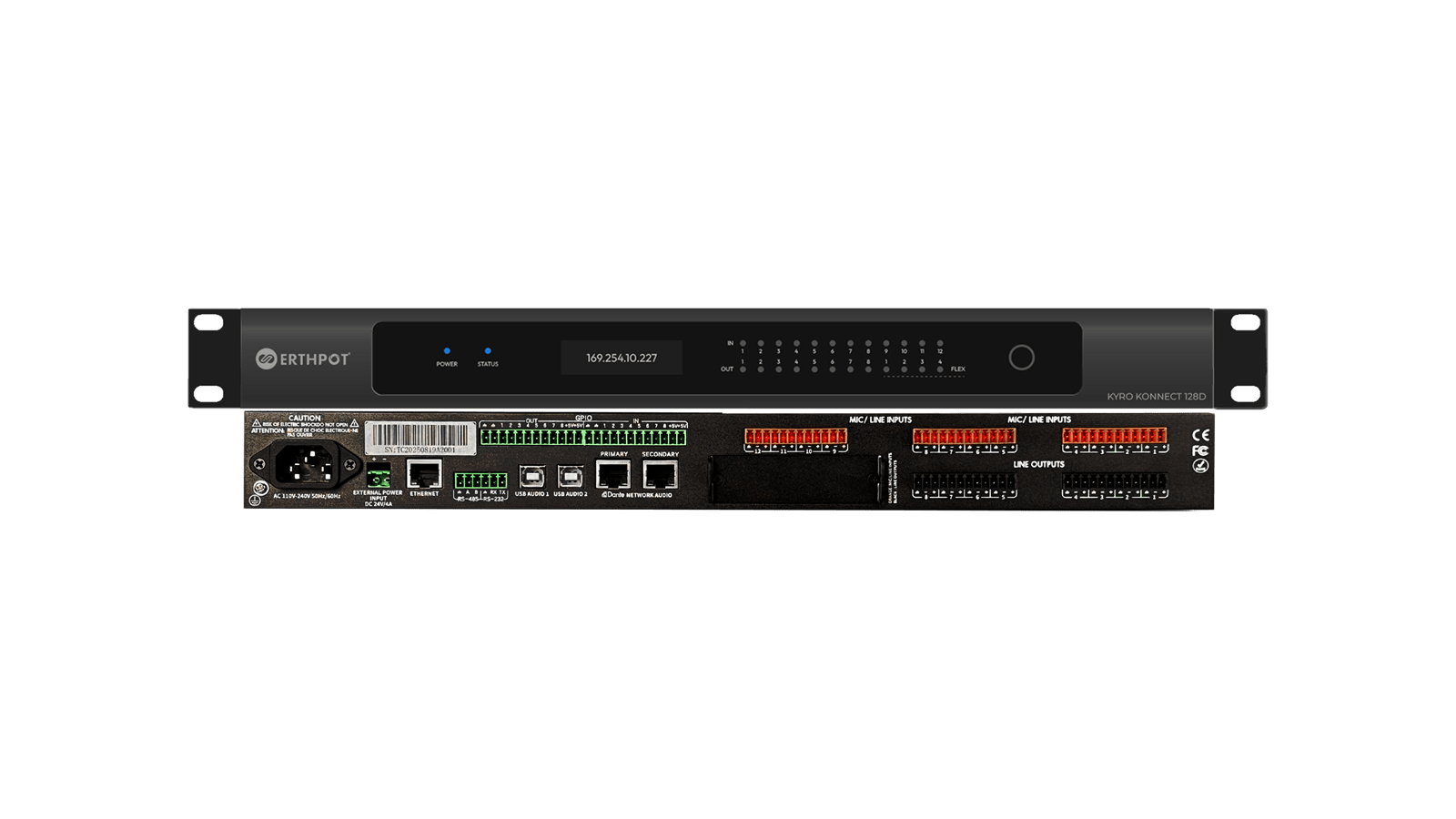

The KYRO KONNECT 128D is a next-generation digital audio processor from ERTHPOT, designed for high-performance and flexible audio system integration. It features 12 mic/line inputs with 48V phantom power, 8 analog outputs, and configurable I/O options to suit diverse project needs. Supporting Dante network transmission up to 128×128 channels, it ensures ultra-low latency, precise synchronization, and seamless plug-and-play compatibility. With user-friendly design software, freely combinable DSP architecture, and an interactive graphical control interface, it offers intuitive system management. Ideal for conference rooms, council halls, and medium-sized spaces requiring reliable, high-quality audio control and distribution.
| Processor Chipset | ADI SHARC 21569 |
|---|---|
| Channel isolation | 108dB |
| Sampling rate/number of quantization bits | 48K/24bit |
| Input impedance (balanced connection) | 5.4KΩ |
| Input gain-adjustable in 6 dB increments | 0/4/12/18/24/30/36/42/48dB/54dB |
| Output impedance (balanced connection) | 600Ω |
| Phantom power | +48V/10mA max |
| Working power supply | AC 100-240V, 50/60Hz and DC24V 4A |
| Frequency response (20~20kHz) | ±0.3dB |
| Maximum level | +22dBu |
| Dante Primary/Secondary | RJ451000 Mbps |
| THD+N | ≤0.002% |
| Dante Channel | 128x128 |
| Input dynamic range | 118dB |
| Product dimensions (width × height × depth) | 482 x 260 x 45mm |
| Output dynamic range | 118dB |
| Information screen | 2.08-inch flip display |
• Equipment type: audio processing server.
• Drag-and-drop DSP module (non-fixed), unified management.
• 12 microphone/line level analog audio inputs, 8 line level analog audio outputs.
• Supports customization of 4 line-level analog input/output channel cards, with a maximum of 16 inputs and 8 outputs or 12 inputs and 12 outputs; USB channel: Dual USB interface, supports two computers to be used at the same time, with a maximum of 4 inputs and 4 outputs.
• Audio playback: built-in 4 multi-track players, supports scheduled playback, parallel 16-track playback, supports MP3 and WAV audio files.
• Media storage capacity: up to 64 GB.
• Network channel: 128×128 Dante network channel, supports the number of streams 128×128.
• AEC channel: up to 12 assignable and routable AEC processor modules.
• Feedback suppressor channel: 144 channels.

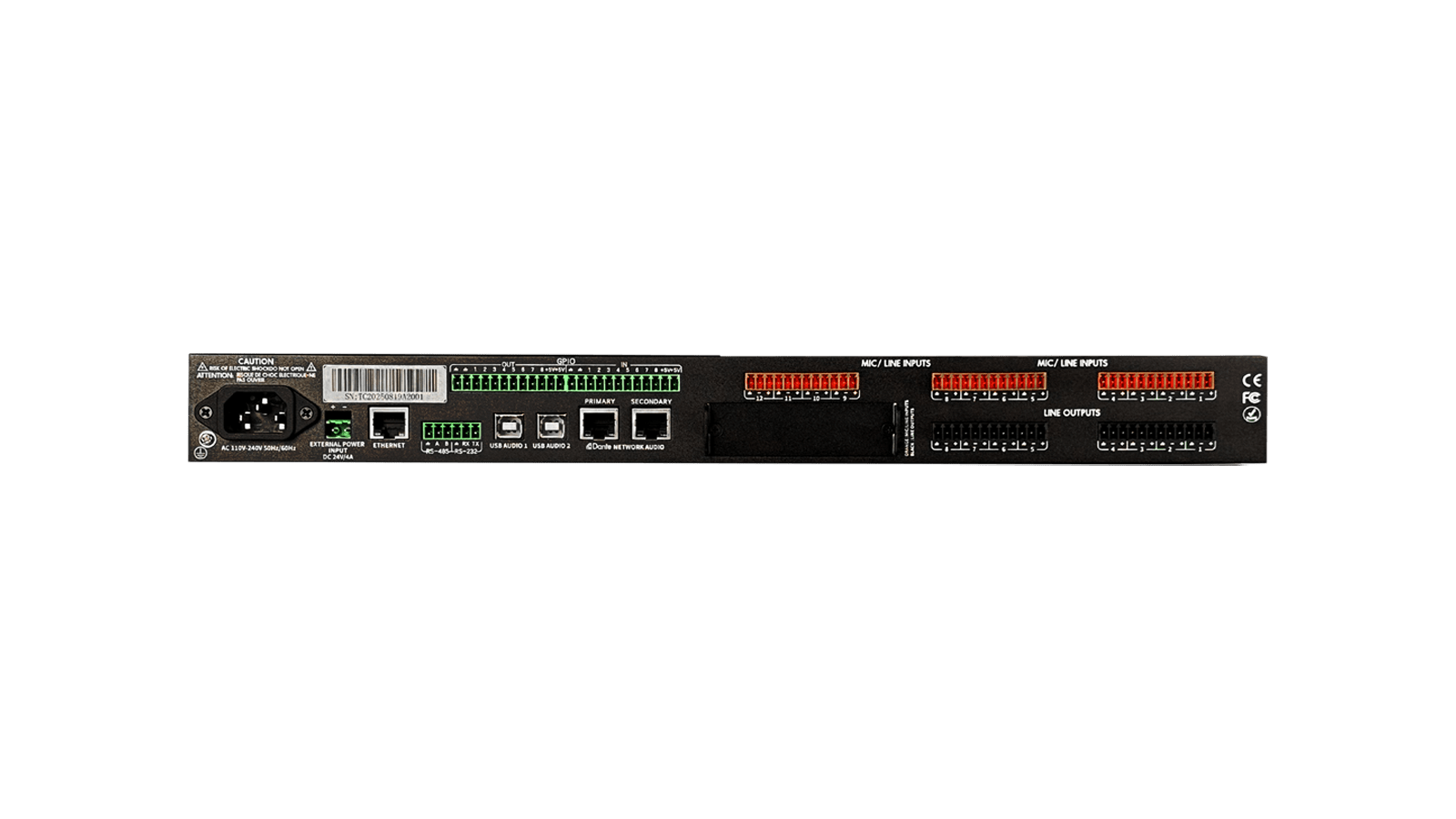

• Control port: supports 8 GPI and 8 GPO channels, 1 RS-232 interface, 1 RS-485 interface.
• Dynamic range: ≥118dB.
• Total harmonic distortion: ≤0.002%.
• User interface: The graphical user interface can be edited as needed.
• Power supply: built-in universal power module and 24V 4A DC external power supply, dual power supply backup.
• The front panel has input and output signal indicators, OLED display, and touch page turning buttons.
