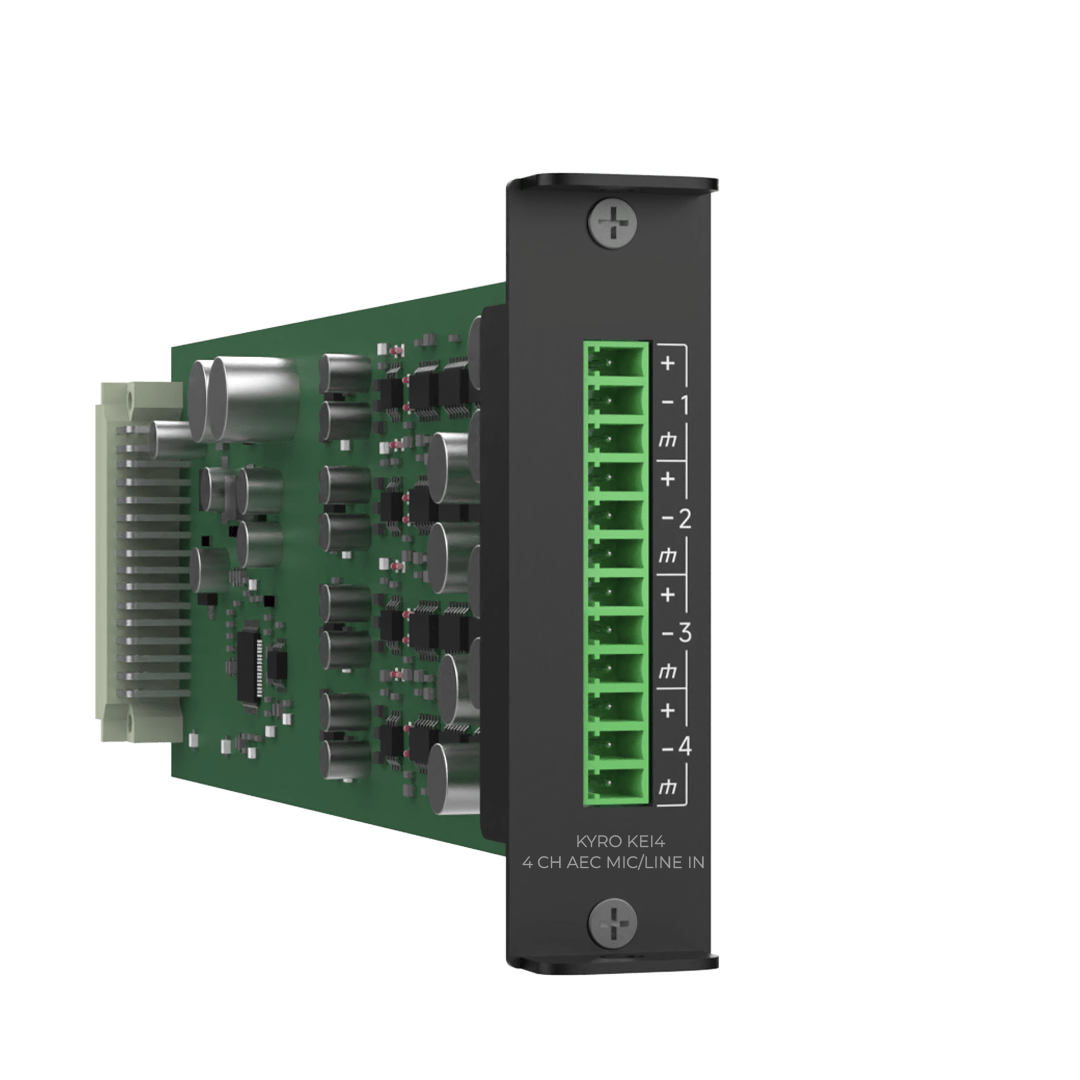

KYRO KEI4

The KYRO KEI4 AEC Input Card delivers a 4-channel Acoustic Echo Cancellation (AEC) function. Similar to the analog input card, it features a +48V phantom power supply, a -60 dBu to +24 dBu level control range, and a 0 dBu to +54 dBu gain control. This card provides broadband AEC processing with an impressive tailing time of up to 512 ms. Notably, each channel of the AEC input card offers independent input and direct output for seamless local amplification.

Specifications
Features

FREQUENCY RESPONSE	±0.02DB (20HZ-20KHZ @+4DBU)
INPUT IMPEDANCE	5.5KΩ
DYNAMIC RANGE	118DB
THD+N	≤0.001%
MAXIMUM INPUT LEVEL	+22DBU/-10DBV OPTIONAL
HOT-SWAPPABLE	SUPPORT
HARDWARE INTERFACE	12PIN 3.56MM EUROPEAN STYLE SEPARATE TERMINAL

The AEC input card provides a 4-channel AEC (acoustic echo cancellation) function, phantom power, 84 dB gain level, and a 58 dB microphone preamp function.
Provides aec wide-band processing, tail time up to 300ms.
Each channel of the AEC input card has independent inputs and direct outputs for local sound reinforcement.
Supports 4-channel microphone/line-level analog audio signal input and provides 48V phantom power.
4 channels of 300ms aec echo cancellation processing, which does not occupy host processing resources.
