2 IN 6 OUT LOUDSPEAKER MANAGEMENT SYSTEM
Categories: Loudspeaker Management System

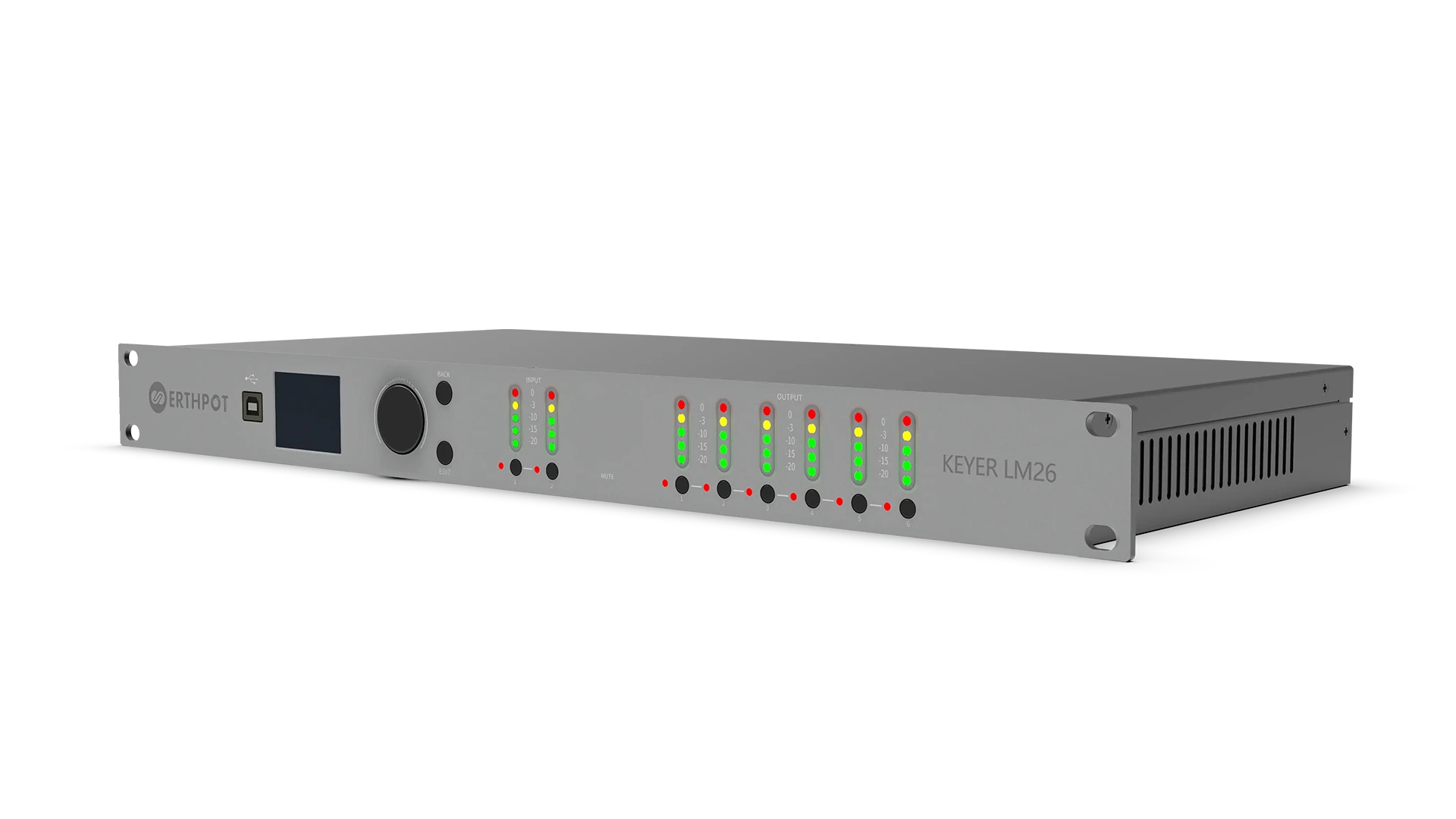

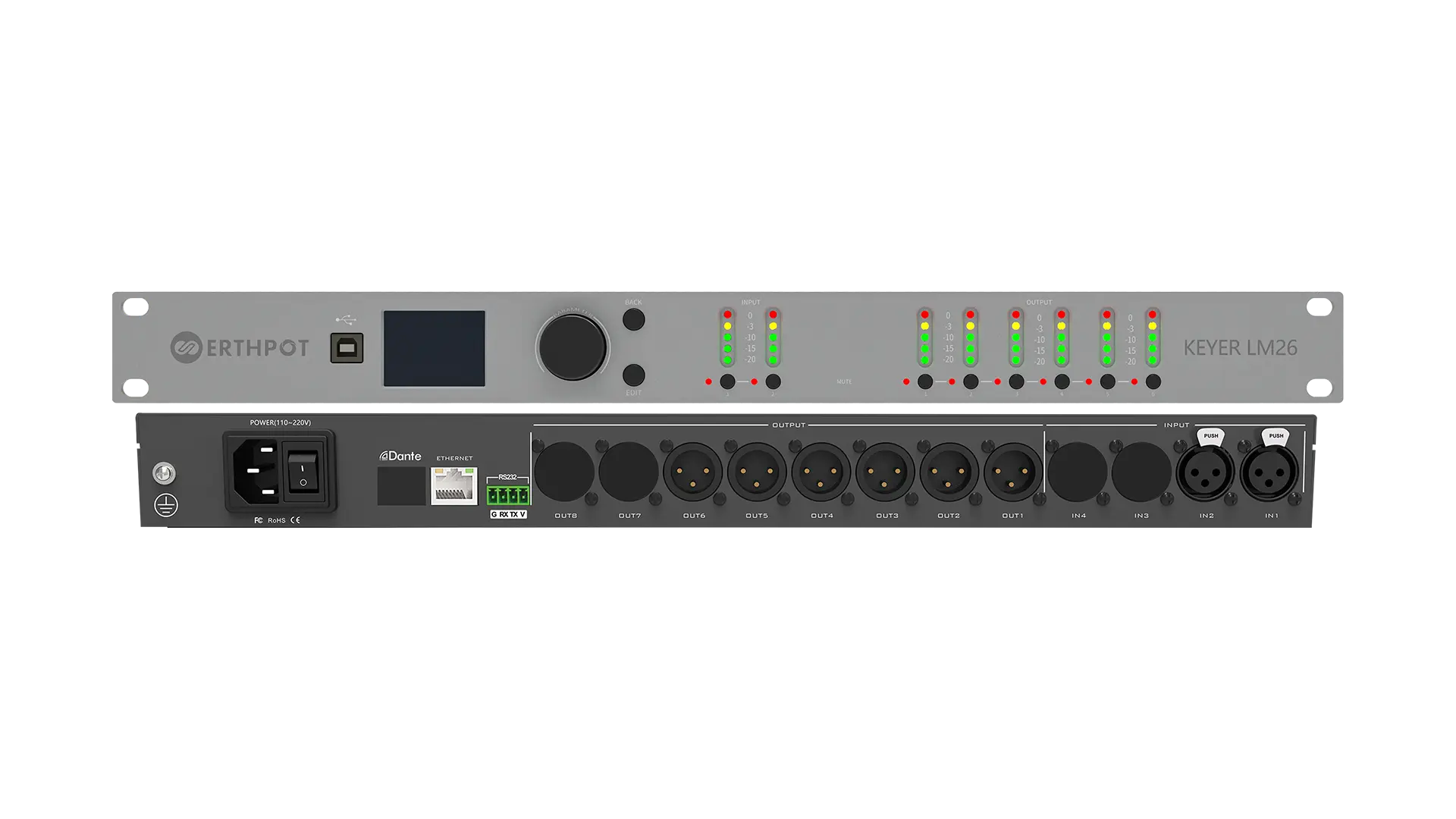

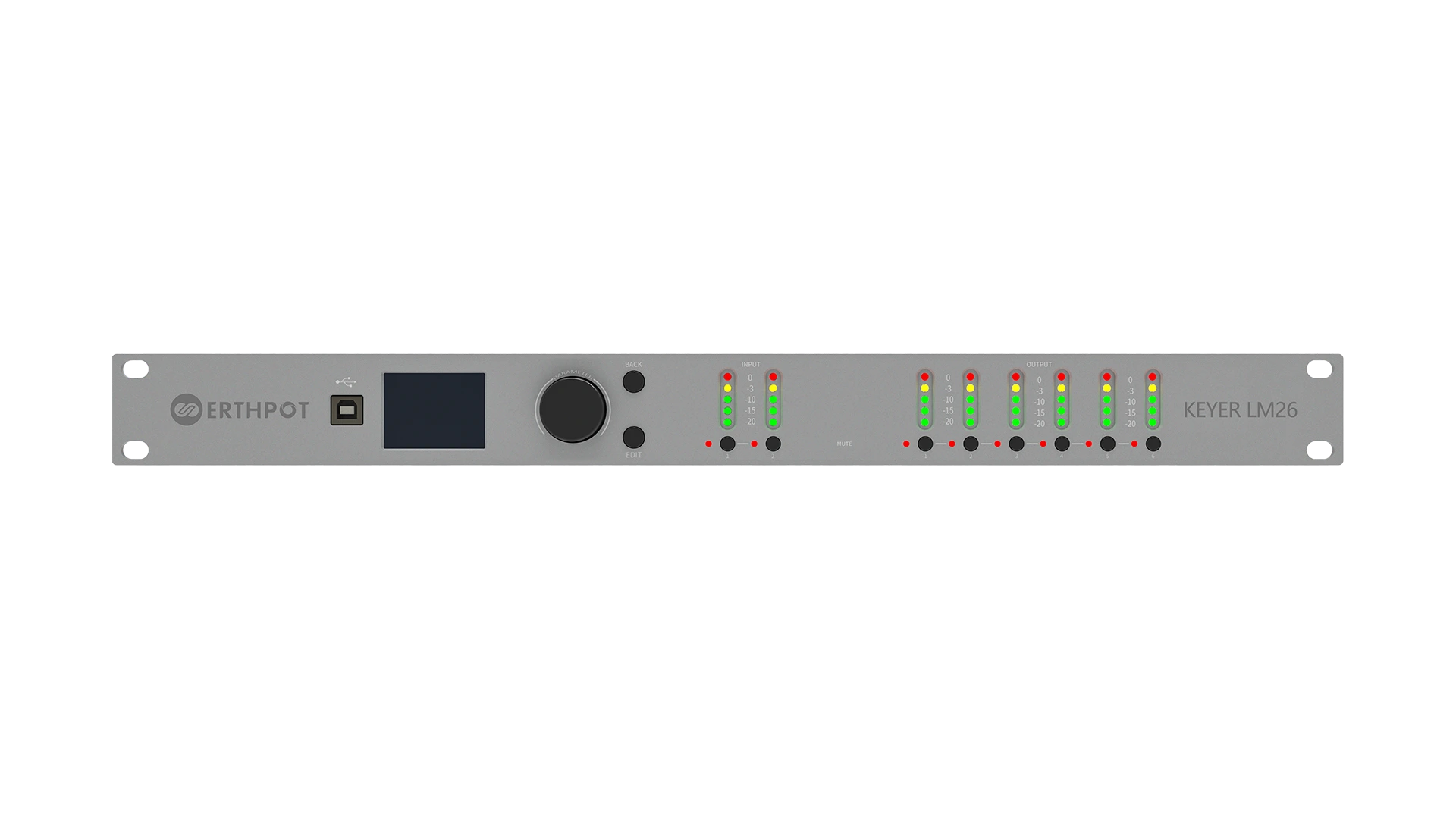

The Erthpot Keyer LM26 is a versatile digital speaker management system designed for professional audio environments. Featuring an interactive LCD and an intuitive GUI, it allows for fast and precise control of speaker parameters. Equipped with a high-performance 512-tap custom FIR filter, the LM26 ensures stable, linear phase audio processing. It offers flexible Input/output channel duplication, channel binding, and support for multiple scene save and recall options for quick setup adjustments. Its user-friendly front panel includes a rotary encoder for effortless navigation and control. Ideal for live sound applications, theatres, nightclubs, concert halls, and other professional venues, the Keyer LM26 integrates seamlessly with other Erthpot audio systems to adapt to a wide range of demanding audio scenarios.
| INPUT INTERFACES | 2 Analog |
|---|---|
| OUTPUT INTERFACES | 6 Analog |
| DISPLAY | Embedded GUI interface, quick adjustment of parameters |

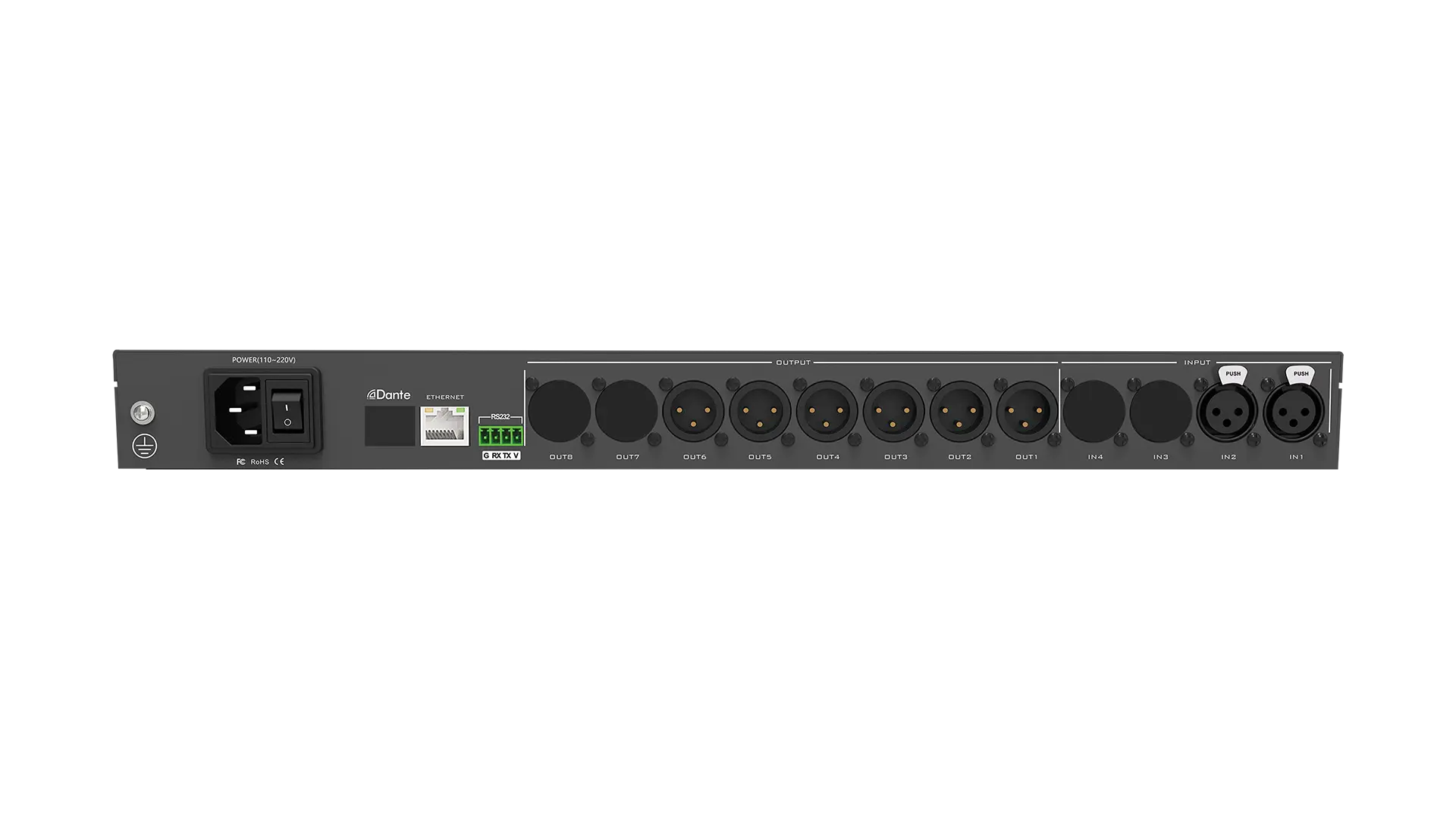

| CONTROL INTERFACES | 1 RJ45 interface, 1 RS232 interface, 1 USB Type B |
| INPUT CHANNEL | Functional module: Mute, Gain, Delay (0-180ms), 31-band Graphic Equalizer, Expander, Compressor. Physical interface: Balanced Physical interface: Balanced XLR female connectors |
| OUTPUT CHANNEL | Functional module: Delay (0-60ms), Crossover, 15-band Parametric Equalizer (filter type selectable Low Shelf, High Shelf), Gain, Mute, Limiter, Phase. Physical interface: Balanced XLR male connectors |
| INPUT IMPEDANCE | Balanced: 20KΩ |
| OUTPUT IMPEDANCE | Balanced: 100Ω |
| FREQUENCY RESPONSE | 20Hz～20KHz, ±0.2dB |
| NOISE FLOOR | -90dBu |
| THD+N | ≤0.002% @1kHz, +4dBu |
| CHANNEL ISOLATION | 105dB@1kHz, 4dBu |
| INPUT RANGE | ≤+20dBu (A-Weighting) |
| CROSSOVER | Three types of high and low pass filters: Butterworth, Bessel and Link Witz-Riley |
| EQUALIZER | Parametric Equalizer: Frequency: 20 to 20kHz, Gain: - P 15 to +15dB, Bandwidth: 0.05 to 4. Graphic Equalizer: Frequency: 20～20kHz, Gain: -15～+15dB |
| MAXIMUM OUTPUT LEVEL | 20dBu |
| MAXIMUM INPUT LEVEL | 20dBu |
| WORKING VOLTAGE | AC 110V～220V, 50Hz/60Hz |
| MAXIMUM POWER | 20W |
| WORKING TEMPERATURE AND HUMIDITY | -10℃～50℃, 10%～90%RH, No condensation |
| CHASSIS | 1U |
| PRODUCT DIMENSION (L×W×H) | 486mm×208mm×44mm |
| NET WEIGHT | 2.5kg |
| PACKAGE DIMENSION (L×W×H) | 590mm×430mm×110mm |
| PACKAGE WEIGHT | 3kg |
