4K60 Ultra HD PTZ Camera
Categories: PTZ Camera
The ACZ20X 4K is specifically designed for the professional market, offering top-notch quality and performance with its large 1/2.5” sensor, to deliver crystal clear images with stunning detail. The 20X optical zoom with wide-angle field of view allows for close-up shots without sacrificing image quality, making it perfect for capturing every moment with precision. It also boasts a sturdy and smooth robotics mechanism to ensure seamless movement and precise positioning, giving you the flexibility to capture the perfect shot every time. Whether you’re broadcasting a live event, conducting a conference, streaming live content, or recording a podcast, the ACZ20X 4K is the perfect companion for any professional video capture.
| Lens | 20X Optical Zoom, f=5.05m(W)~91.49mm(T),F1.8~F2.9 |
|---|---|
| Image Sensor | SONY 1/2.5" CMOS |
| Pixels | 8.50 Megapixels, 8.29 Effective Megapixels |
| Scan Mode | Line by line |
| Digital Zoom | 16X |
| White Balance | Auto, Indoor, Outdoor, Keying, Auto Tracking |
| Minimum Illumination | 0.1Lux |
| Shutter Speed | 1/50s ~ 1/10000s |
| Digital Noise Reduction | 2D&3D Digital noise reduction |
| Preset Position | 9 preset positions by IR remote controller, 255 preset positions by joystick controller |
| POE | 802.3af |
| Input Voltage | DC 12V |
| Input Current | Max.2.0A |
| Power Consumption | Max.24W |
| Operational Temperature | 0~40°C |
| Storage Temperature | -10~60°C |
| Camera Dimensions | (W)134*(D)174*(H)191mm |
| Color | Black, White (Optional) |
| Weight | 1.2kg |
| Accessories | DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
4K Ultra HD Resolution: The new generation of SONY 1/2.5-inch high-quality CMOS sensor supports up to 4K60 ultra-high-definition resolution for broadcasting and image output, making it suitable for recording in larger scenes.
• 20x optional optical zoom lens: The device features a 60.05° field of view and utilizes a high-quality telephoto lens, offering a 20x optical zoom and supporting 16x digital zoom.

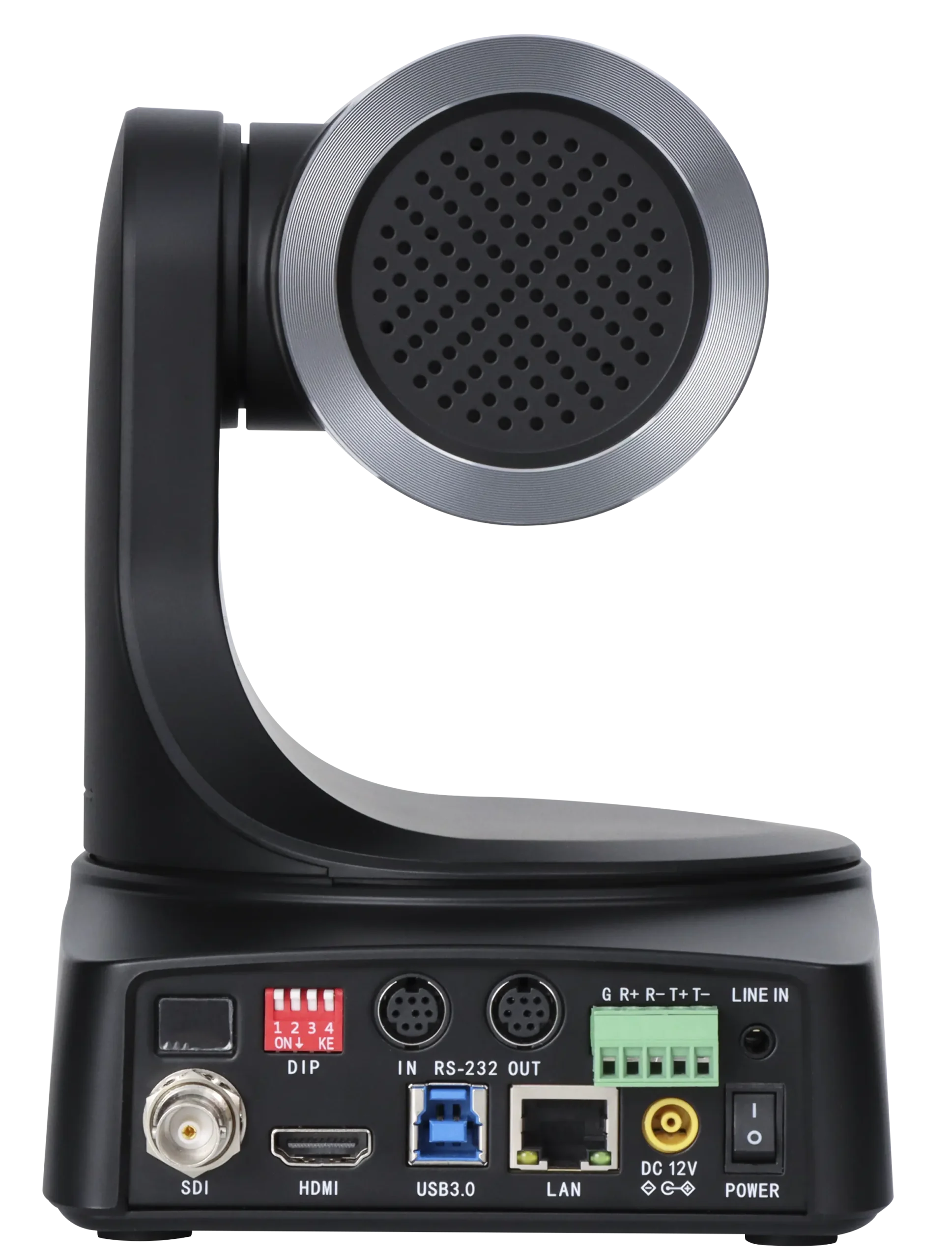

• USB3.0+HDMI+LAN+3G-SDI Abundant Outputs for Rich Application Scenarios: compatible with all current mainstream video output interfaces. HDMI, USB3.0, and LAN support 4K60 resolution output, while 3G-SDI supports 1080p60 resolution output. All interfaces can output simultaneously.
• Low Light: brand-new CMOS image sensor features an ultra-high S/N Ratio, which effectively reduces image noise in low-light conditions. By applying both 2D and 3D Digital Noise Reduction simultaneously, it significantly minimizes image noise. Even in ultra-low light conditions, the frame remains clean and clear, with the S/N Ratio of the image exceeding 50dB.
• IR Pass-through: In addition to receiving signals from its dedicated remote control, it can also receive signals from users’ infrared remote controls and transmit them to the video conferencing terminal through the VISCA IN port.
• Multiple Video Compression Standards: Different interfaces support YUY2, H.265, MJPG, and H.264 multiple video compression formats.
• Multiple Network Protocols: Supports ONVIF, SRT, RTSP, RTMP, FreeD, and NDI®|HX3 (optional) protocols, supports the automatic identification protocol.
• Multiple Control Protocols: Support VISCA (VISCA Over IP), PELCO P/D, NDI® (optional) protocol, and automatically identifies protocols.
• New generation AI humanoid + face recognition tracking algorithm: control through five types of gestures, such as activating/deactivating intelligent tracking and automatic framing, switching tracked targets using gestures, customizing tracking sizes, and zooming in/out the lens through gesture control. Supports intelligent tracking, automatic framing, and gesture recognition functions.
• Multi-installation Methods: Wall mounting, desktop, or ceiling mounting.
