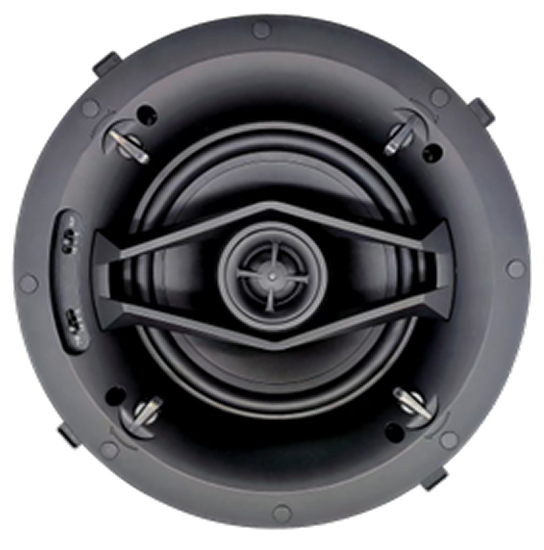

In-Ceiling Integrated Semi-automatic open back Loudspeaker
Categories: Ceiling Speaker
The ACS6i-OB from the Erthpot Antares series is a high-performance ceiling speaker designed to deliver versatility along with premium audio quality. It features a 6.5″ polypropylene cone that produces rich, well-defined bass, complemented by a 1″ rotatable silk soft dome tweeter for clear and detailed high frequencies. With a wide frequency response of 57Hz–20kHz, it ensures balanced sound reproduction across various applications. Built for efficiency and ease of installation, the speaker incorporates a semi-automatic buckle mechanism and a push-down wiring system, making it an excellent choice for streamlined system integration in diverse environments.
| Mid-bass driver | 1 × 6.5" |
|---|---|
| Tweeter | 1 × 1" dome |
| Input mode | 8Ω / 100V / 70V |
| Rated power (8Ω fixed resistance) | 40W, 160W (Peak) |
| Rated power (100V fixed voltage) | 40W / 20W / 10W / 5W |
| Rated power (70V fixed voltage) | 40W / 20W / 10W / 5W |
| Effective frequency range | 57Hz – 20kHz |
| Sensitivity (1m/1W) | 90dB |
| Maximum SPL | 108dB |
| Grille Material | Aluminum alloy |
| Back shell material | Pressed steel |
| Speaker depth | 98.3mm |
| Embedded depth | 101mm |
| Cutout Diameter | 229mm |
| Product Net weight | 1.8kg |
| Packaging weight | 2.2kg |
